Vessel’s Specification
Ship Name：
***
IMO No.：
-
Ship Type：
Deck Barge /LCT
Class：
ZC
Built Place：
China
Navigation Area：
A1+A2
Flag：
China
Built Date：
2023.07
Loa：
129M
Breadth：
28M
Depth：
7M
Draft：
5M
DWT：
14000T
GT：
6670T
NT：
3735T
Deck Loading：
10t/㎡
ME Brand：
Guangzhou diesel engine
Main Engine Model：
6320ZCd– 10
ME Power：
1765kw
RPM：
55R/Min
Speed：
10KN
Aux. Engine Brand：
Weifang diesel engine
Aux. Engine No.：
2
Aux. Engine Power：
240kw
Oil Consumption：
- T/D
Main Engine No：
Double

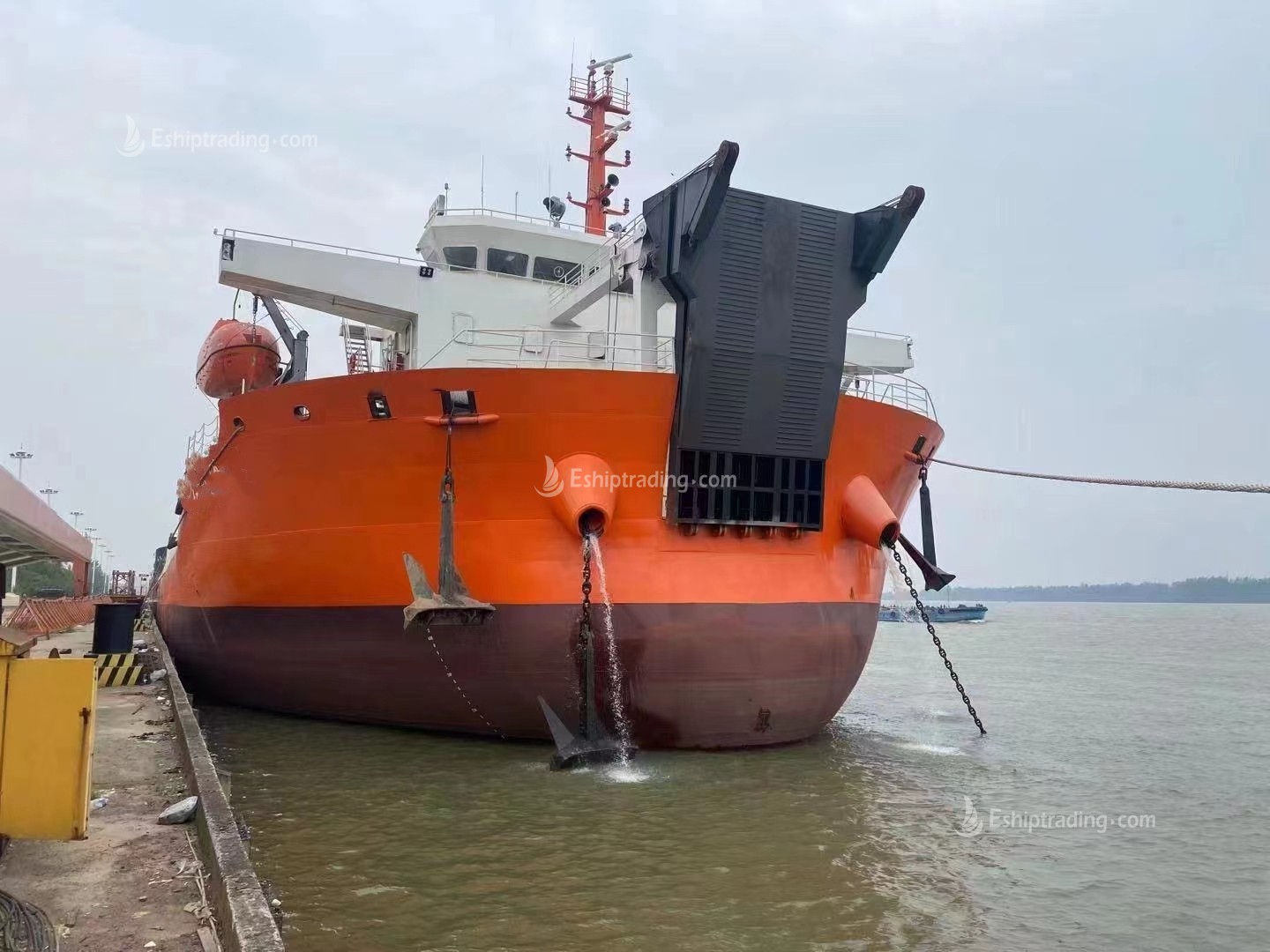

Ramp：
yes
Derrick/Crane：
no
Hull Construction Type：
Single Hull
Bridge Arrangement Type：
Forward Type
NOx emission standard of diesel engine：
Tier III
Release Date：
2023.10.24
Certificates, Drawings
Certificate of Inspection：
No
General Arrangement Plan (GA)：
yes
Certificate of Ship Ownership：
No
Certificate of Registry：
No
Ship Equipment List：
yes
Remarks
The construction of the ship has been completed， the sea trial has been completed， and all ship certificates will be obtained within three months.
